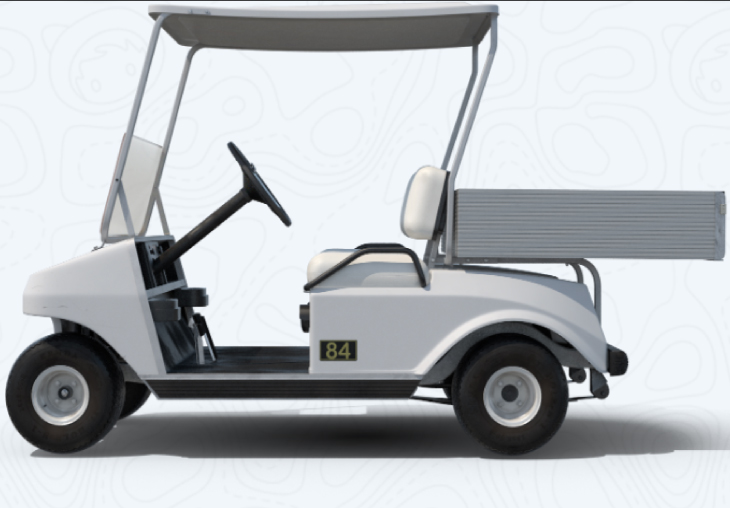

Are you facing a challenge to transport small cargo? Our H102 a perfect solution for up to 100kg of cargo transport.

Drive MotorKDS(ADC), DC 48V/3.7KW
Battery Eazy Power- 6 x 8V /170AH @ 20HR rate (Advanced GEL technology maintenance free battery with 2 years warranty & 5+ years life span)
Controller Curtis 1266A, 48V/275A
Maximum Speed Forward: 25 km/h ; Reverse : 9 km/h
Grade Ability40%
Turning Radius ≤2.8m
PayLoad100kg
Overall Dimension2750×1220×1850 (mm)
Weight 440kg (Battery included)
Wheelbase 1650 mm
Width (mm) 2400 mm
Track width Front: 870mm; Rear: 985mm
Suspension Front suspension: Macpherson independent suspension Rear suspension: Single-leaf spring and telescopic hydraulic shock absorber
Brakes Rear-wheel mechanical drum brake & Electromagnetic excitation brake & Electric parking
Frame High strength aluminum alloy chassis
Tire 18×8.5-8 (4ply)
