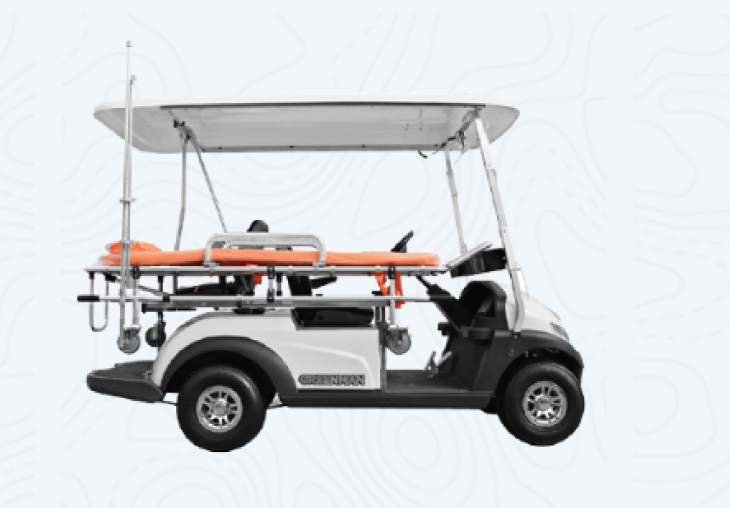

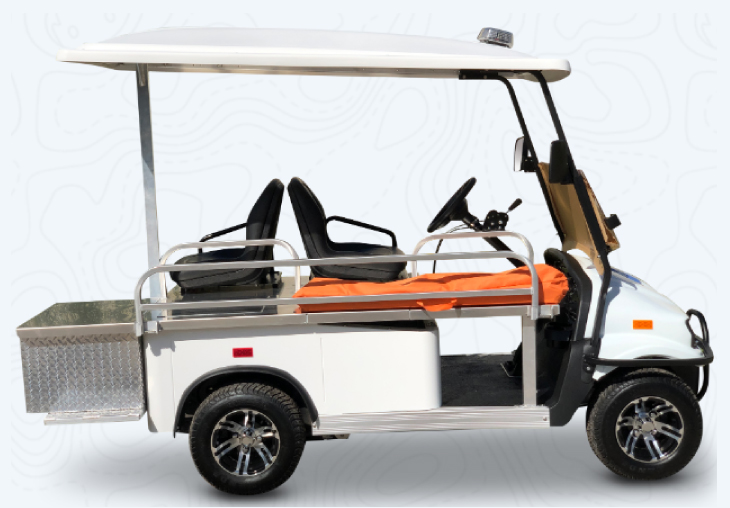

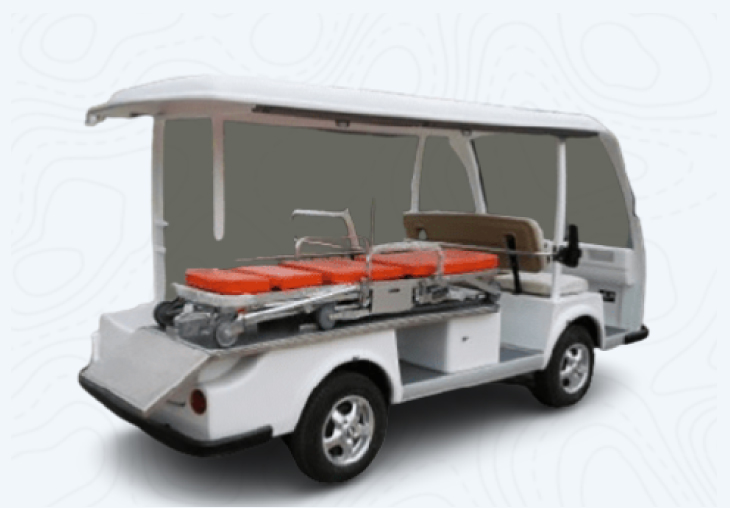

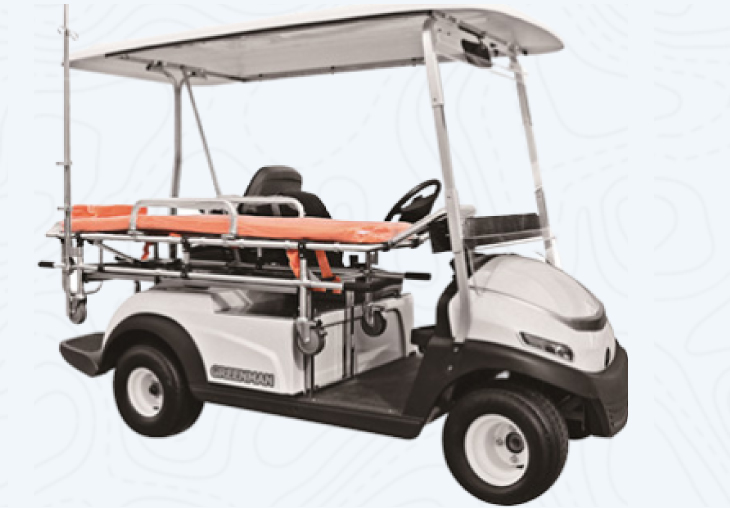

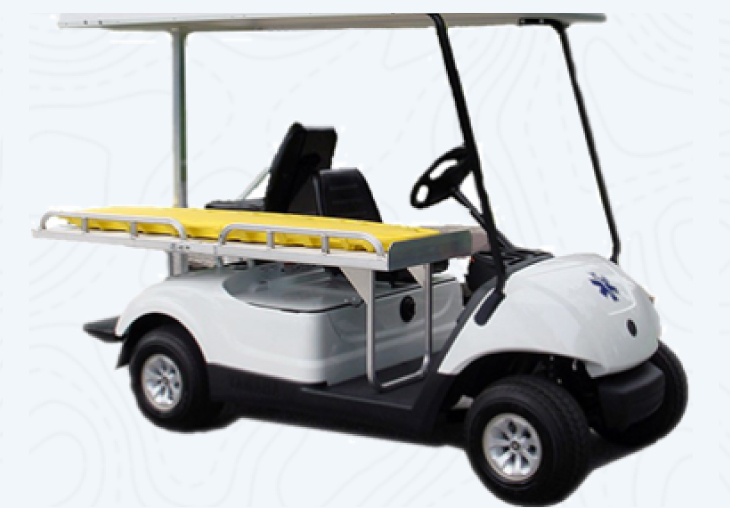

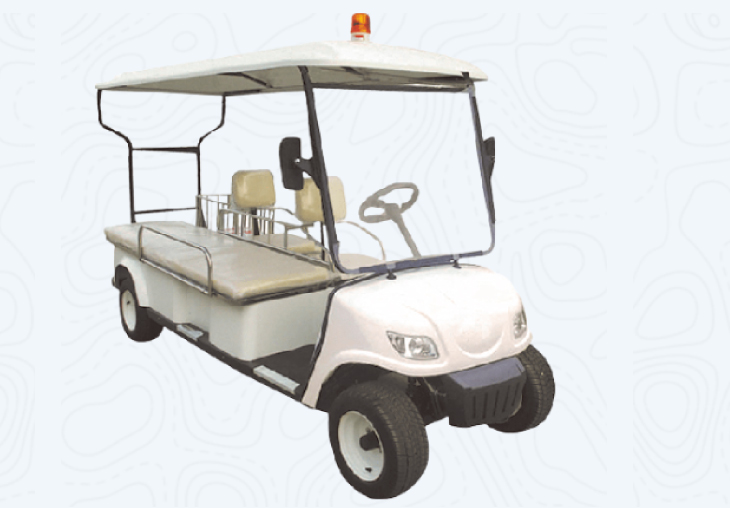

An ambulance model golf cart with stretcher is a perfect solution for patient relocation.

Drive MotorGREENMAN, Three-phase asynchronous, AC, 48V/4kW
BatteryEazy Power- 6 x 8V /170AH @ 20HR rate (advanced GEL technology maintenance-free battery with 2 years warranty & 5+ years life span)
Controller Toyota 48M350, 48V/350A
Maximum Speed Forward : 22km/h; Reverse: 9km/h
Grade Ability10%
Turning Radius ≤2.8m
PayLoad360kg
Overall Dimension2795×1245×1950 (mm)
Weight 450kg (Battery include)
Wheelbase 1650 mm
Track width Front: 870mm; Rear: 985mm
Suspension Front suspension: Macpherson independent suspension Rear suspension: Single leaf spring and telescopic hydraulic shock absorber
Brakes Mechanical drum brake & Electromagnetic excitation brake & Electric parking
Frame High strength aluminum alloy chassis
Tire 18×8.5-8 (4ply)
